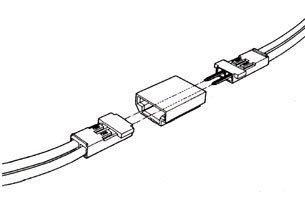

Mini-Latch Flying Connector Housing, 2,54 mm
BERGCON System
|
|
FEATURES
|
- The dual metal mini-PV contact design for hight reliability.
- Crimp-to-wire Male Pin protected by a shroud.
- Shroud incorporates latching and polarization.
- Contact can be inserted with the shroud added-on.
|
|
|
Spacing
|
|
|
2,54 mm
|
Polarization/latching
|
|
|
Configuration of plastic parts |
Housing/Shroud
|
Material
|
|
Thermoplastic UL 94 V-1, colour black.
|
|
Insulation resistance
|
|
1x10 M min
|
|
Temperature range
|
|
-40ºC to + 105ºC
|
|
Withstanding voltage
|
|
1000 V rms (sea level)
|
Contact
|
Type
|
|
Mini-PV and Crimp-to-Wire Male Pin
|
|
Current rating
|
|
3 A continuous
|
|
Resistance
|
|
5 m max
|
Packaging
|
|
|
housings and shrouds: bulk
|
|
