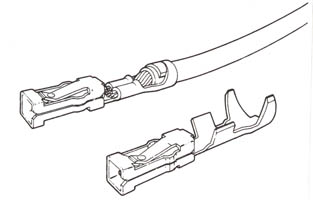

Contact Crimp-to-wire, 2,54 mm

DUBOX System

FEATURES
  • Reliable dual-beam design features pre-stressed contact beams for low insertion force.
  • Mates with very short pins (5 mm).
  • Duplex plated for minimum gold consumption.
  • Universal crimp barrel accomodates wires from AWG 22-30
  • Special versions for AWG 20-22 and AWG 28-32.
  • Extensive range of application equipment provides lower total applied cost.

Technical data
Spacing


2,54 mm min.
Contact Material


Phosphor bronze
Plating/Performance


Gold duplex, in reference yo DIN 41612, part 5 or tin/lead
Current rating


3 A max.
Resistance
   15m max. iniatially - 20 m max. after tests
Insertion
   Gold finish 1,3 N (130 gf)
Withdrawal force (min.)
   Gold finish 0,3 N (30 gf)
Packaging


contacts on trip: reel, loose piece contacts: box
